Sublimation Transfer Paper Digital Printer CF-2000 for Digital Printing

Sublimation Transfer Paper Digital Printer CF-2000 for Digital Printing

Machine Type:CF-2000
Dimensions(L*W*H):2895mm*840mm*1490mm
Ink Type:CMYK
Max Print Width:1900mm
Printing:300DPI(Physical)
Printing Speed:2PASS:105㎡/h; 3PASS:70㎡/h; 4PASS:55㎡/h ;6PASS:35㎡/h

Leave Message Inquiry Online

Product Description

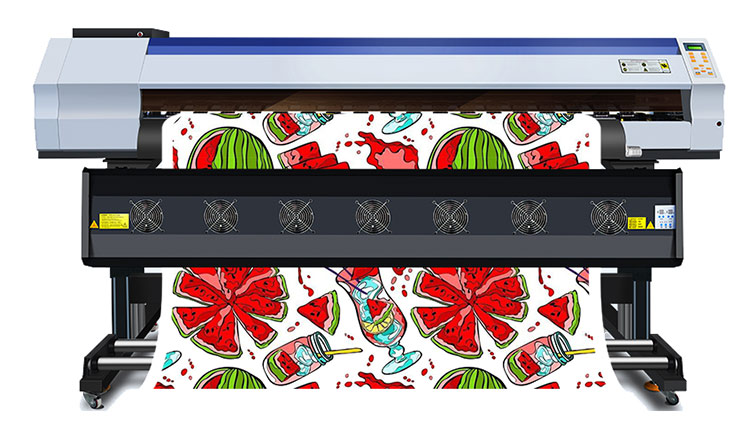

Digital Printer CF-2000

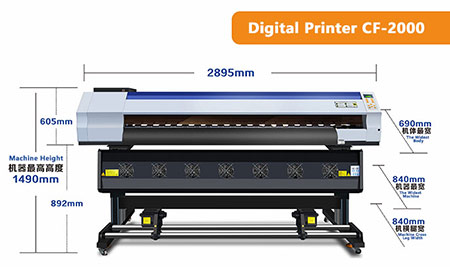

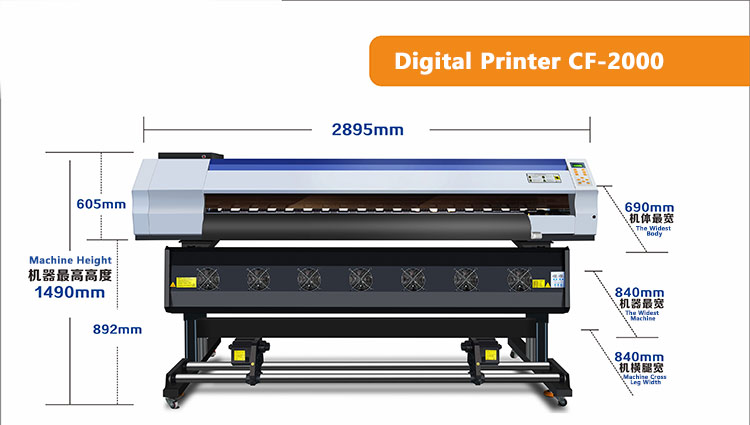

Size data

Functions and features:

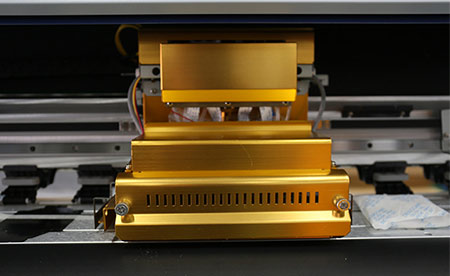

1. Small frame: The height of the independently developed double-head nozzle can be adjusted arbitrarily, flexibly responding to printing materials of different thicknesses, and local gold color matching. The anti-scratch paper function on both sides of the trolley frame reduces the damage of the print head caused by the lifting of the paper.

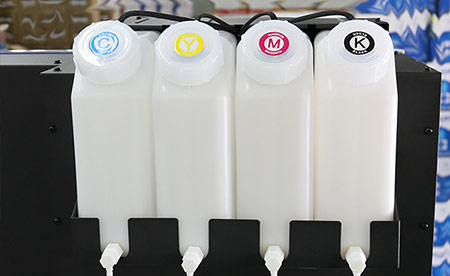

2. Ink cartridges: 4 3L ultra-large-capacity ink cartridges independently and continuously supply ink, which guarantees long-term continuous operation of the equipment.

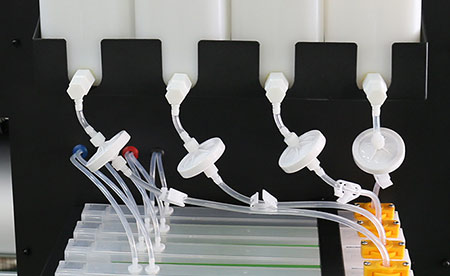

3. Dish-shaped filter: effectively remove impurities in the ink, ensure smooth ink supply and protect the print head.

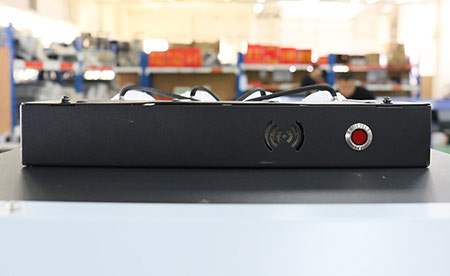

4. Intelligent alarm for lack of ink: Intelligent reminder of lack of ink reduces the cumbersomeness of frequently checking the remaining amount of ink. At the same time, it reminds to add ink in time to ensure the continuity of printing work.

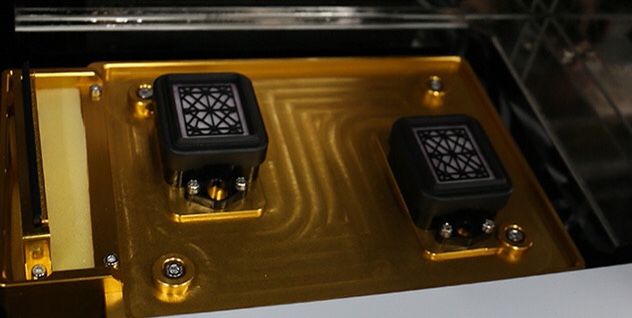

5. Ink stack: equipped with advanced intelligent nozzle cleaning and moisturizing device, providing safe and convenient nozzle cleaning and maintenance functions, operation and maintenance are more convenient.

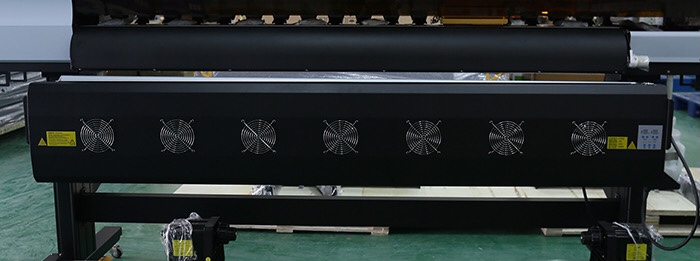

6.Intelligent air-heat integrated dryer, upper and lower heating, middle warm air, intelligent start-stop technology, to ensure more energy-saving while drying.

Advantage

Small frame
Ink cartridges
Dish-shaped filter
Intelligent alarm for lack of ink
Ink stack
Intelligent air-heat integrated dryer

parameter

Device model		CF-2000
Sprinkler	Nozzle type	EPSON I3200-A1
	Number of nozzles	2 pcs
	Nozzle attributes	Automatic cleaning, automatic flash spray moisturizing function
Printing speed		2pass 105㎡/h
		3pass 70㎡/h
		4pass 55㎡/h
		6pass 35㎡/h
Ink	Color scheme	C M Y K
	Ink type	Sublimation ink
	Ink supply method	Siphon ink supply
Effective width		1900mm
Print media		Sublimation paper
Media transfer		Dual power direct collection
Drying method		External intelligent air-heat integrated dryer
Moisturizing mode		Fully sealed automatic moisturizing and cleaning
RIP software		Support Maintop6.1, photoprint, ONYX, NeoStampa and other software, standard Maintop6.1
Support image format		JPG, TIF, PDF, etc.
Computer setup	Operating system	Win7 64bit / Win10 64bit
	Hardware requirements	Hard disk: 500G or more (solid state drive is recommended), running memory 8G, graphics card: ATI independent display 4G memory, CPU: Intel quad-core i5/i7 processor
	Transmission interface	Gigabit Ethernet
Standard configuration		Tension delivery system, intelligent drying system, liquid level alarm system
Working environment		Humidity: 35%-65% Temperature: 18-30 degrees
Power requirement	Input voltage	210-230VAC 50/60 HZ 10A
	Printing system	750W
	Drying system	Maximum power: 3600W
Machine size	Physical dimension	28958401490mm
Machine size	Package dimensions	30209401000mm
Weight	Net weight	289GK
Weight	Gross weight	400GK
